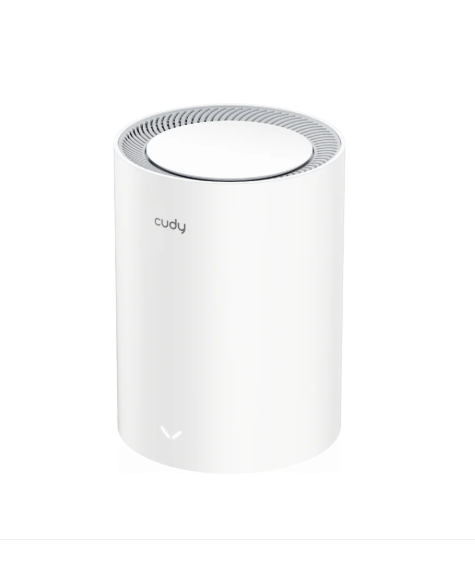

CUDY BE3600 Gigabit Mesh Wi-Fi 7 System M3600 1.0

Regular price: ₱3,550.00
Sale price: ₱3,550.00
Regular price
Unit price: per

Quantity must be 1 or more

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.

4-Stream Dual-Band Wi-Fi 7

2882 Mbps + 688 Mbps Wi-Fi ¹

3× Gigabit Ethernet Ports
200 Connected Devices ²
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control

Model Version	M3600 1.0
CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
	Indoor Coverage Reference	2 Pack: 200 m² (2100 sq ft) 3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

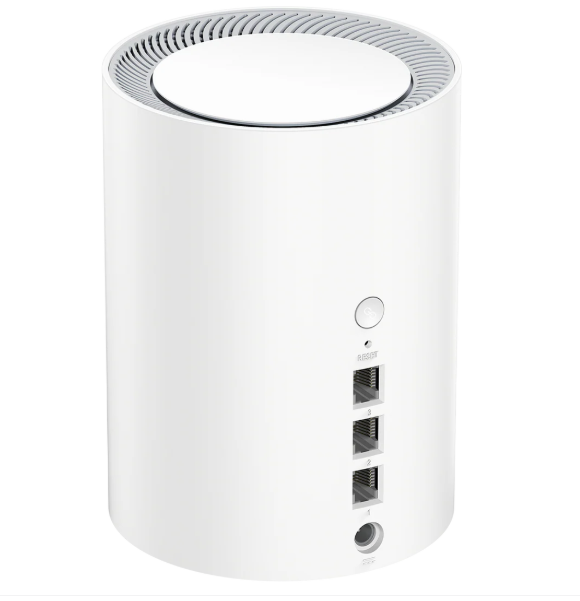

Interfaces	Gigabit RJ45 Ports	3
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System Speed/Link/ACT of Ethernet Port
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power	Power Methods	DC
	DC Input	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	9W
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop
	Dimension	Φ110×154.5 mm Φ4.33×6.08 inches
	Product Weight	357.6 g (12.61 oz.)

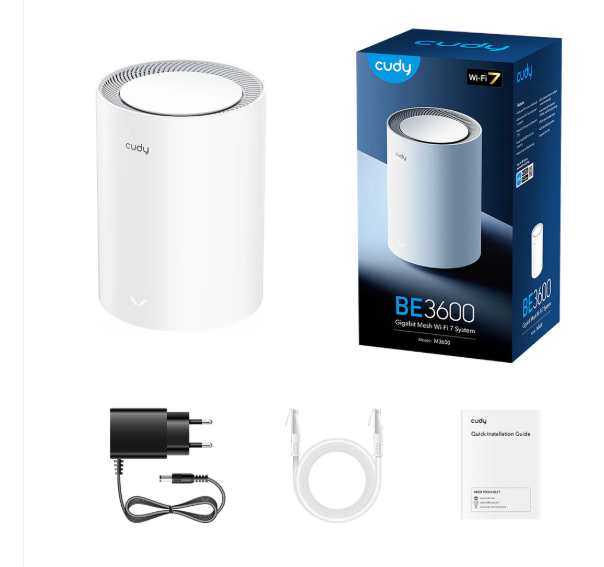

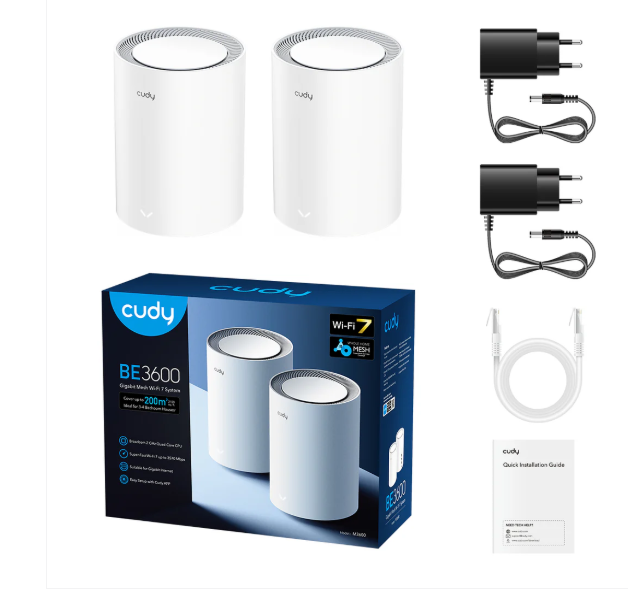

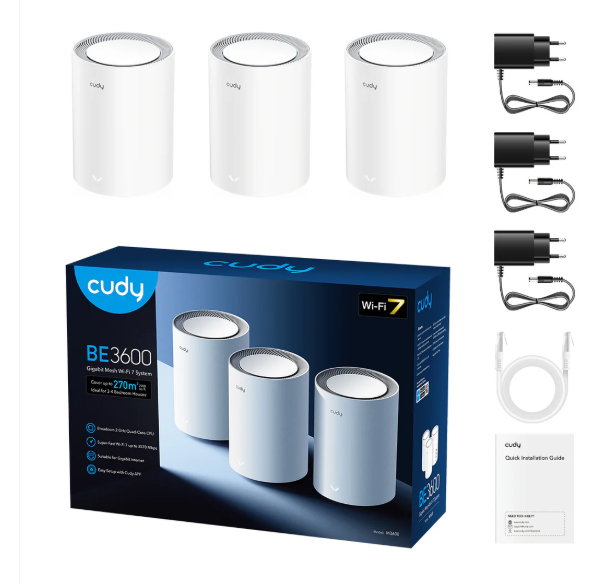

Package Content	M3600 Power Adapter Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	2-Pack \| EU: 1371.3 g (48.37 oz.) 3-Pack \| EU: 1847.5 g (65.17 oz.) 1-Pack \| EU: 731.3 g (25.8 oz.)
	Retail Package Dimension	1-Pack: 145×130×265 mm 5.71×5.12×10.43 inches 2-Pack: 330×130×265 mm 12.99×5.12×10.43 inches 3-Pack: 380×130×265 mm 14.96×5.12×10.43 inches
	Units per Carton	1-Pack: 16 2-Pack: 8 3-Pack: 4
	Carton Dimension	1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches
	Carton Gross Weight	2-Pack \| EU: 12.3 kg (27.12 lbs) 3-Pack \| EU: 8.3 kg (18.3 lbs) 1-Pack \| EU: 13.0 kg (28.66 lbs)
	Carton Net Weight	2-Pack \| EU: 11.0 kg (24.25 lbs) 3-Pack \| EU: 7.4 kg (16.31 lbs) 1-Pack \| EU: 11.7 kg (25.79 lbs)
